Cig-Arrête Wired Products

Larger customers with a number of washrooms, usually require a hardwired system connected to a power supply. The Cig-Arrête wired product part numbers are identified with a 24 suffix. All the products listed are powered by a power supply of 9 - 24 Volts dc. Typically customers use either a 12Vdc or a 24Vdc power supply. All the products listed below can be interconnected using 4 core 0.75mm alarm cable.

Cig-Arrête Powered System Overview

The Cig-Arrête SD Evolution Wired System Products are powered using CSA-0024 or CSA-0012 power supply

No Batteries are required in any device.

Can be installed as a single stand alone unit.

Normally as a wired system as shown left where each device has its own batteries.

All devices are compatible and can be interconnected.

1 x CSA-IR2 Remote Controller is required per system.



REQUEST A CATALOGUE / PRICE LIST

Cig-Arrête Tobacco Smoke Detector

The Cig-Arrête CSA-GOV24 Tobacco Smoke Detector incorporates gas sensing technology and is designed to provide voice messages in any area of a facility to warn of illicit tobacco smoking, such as restrooms, washrooms in schools, hospitals and businesses. The product will provide coverage for an area 3m x 3m x 3m and can be stand alone or hard wired to any other Cig-Arrête SD Evolution product in the range.

Fully programmable with a simple hand held remote, the Cig-Arrête® SD Evolution product range is a truly global product with the ability to play any audio file in any language without the need for complex programming knowledge.

* All SD Evolution systems require part number CSA-IR2 remote control



REQUEST A CATALOGUE / PRICE LIST

Cig-Arrête Flame Detector

The Cig-Arrête CSA-FOV24 incorporates Flame detection and is designed to provide voice messages in any area of a facility to warn of illicit tobacco smoking, such as restrooms, washrooms in schools, hospitals and business. The product will detect and indicate detection within one second of a 25mm flame up to a distance of  6 meters.

Fully programmable with a simple hand held remote, the Cig-Arrête® SD Evolution product range is a truly global product with the ability to play any audio file in any language without the need for complex programming knowledge.

* All SD Evolution systems require part number CSA-IR2 remote control





REQUEST A CATALOGUE / PRICE LIST

Cig-Arrête Flame & Tobacco Smoke Detector

The Cig-Arrête SD Evolution CSA-FGV24 incorporates Flame and Tobacco Smoke detection and is designed to provide voice messages in any area of a facility to warn of illicit tobacco smoking, such as restrooms, washrooms in schools, hospitals and business.

Fully programmable with a simple hand held remote, the Cig-Arrête® SD Evolution product range is a truly global product with the ability to play any audio file in any language without the need for complex programming knowledge.

* All SD Evolution systems require part number CSA-IR2 remote control





REQUEST A CATALOGUE / PRICE LIST

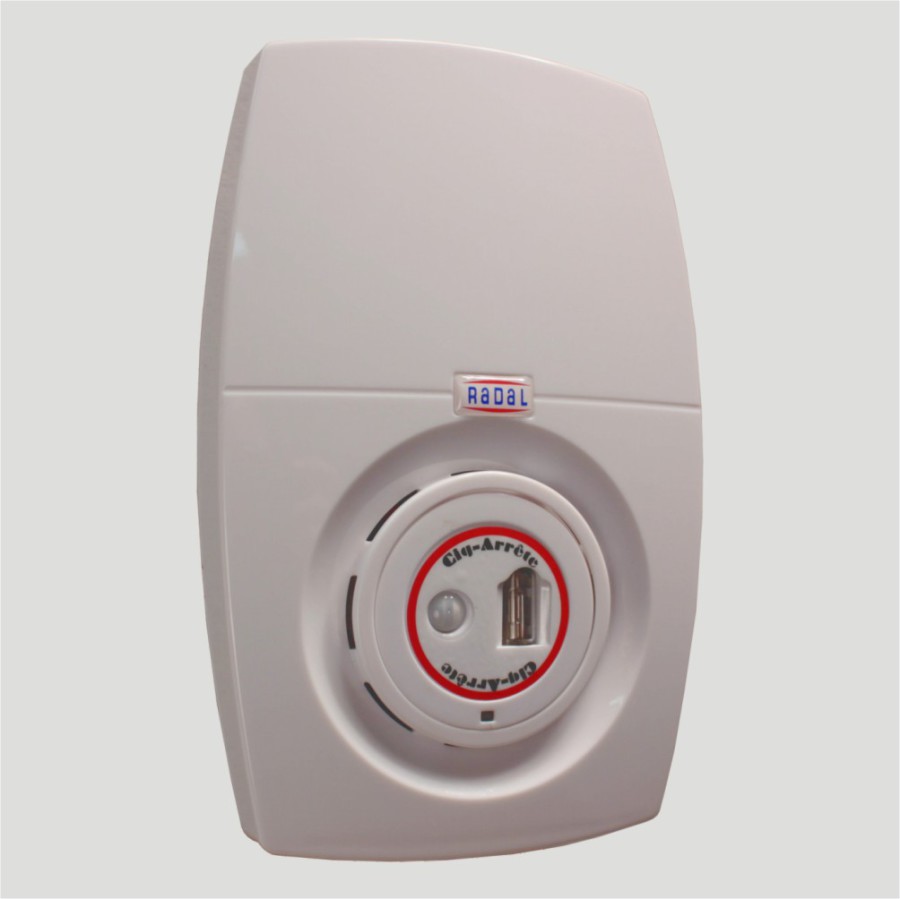

Cig-Arrête Flame & Tobacco Smoke & SpeechPOD

The Cig-Arrête SD Evolution CSA-FGS24 incorporates Flame, Smoke and PIR motion detection and is designed to provide voice messages in any area of a facility to warn of illicit tobacco smoking, special risks or hazards such as slips, trips and falls, infection control procedures, hygiene requirements, security monitoring  or point of sale merchandising.

Fully programmable with a simple hand held remote, the Cig-Arrête® SD Evolution product range is a truly global product with the ability to play any audio file in any language without the need for complex programming knowledge.

* All SD Evolution systems require part number CSA-IR2 remote control



REQUEST A CATALOGUE / PRICE LIST

Cig-Arrête Flame Detector & SpeechPOD

The Cig-Arrête SD Evolution CSA-FSV24 incorporates Flame and PIR motion detection and is designed to provide voice messages in any area of a facility to warn of illicit tobacco smoking, special risks or hazards such as slips, trips and falls, infection control procedures, hygiene requirements, security monitoring  or point of sale merchandising.

Fully programmable with a simple hand held remote, the Cig-Arrête® SD Evolution product range is a truly global product with the ability to play any audio file in any language without the need for complex programming knowledge.

* All SD Evolution systems require part number CSA-IR2 remote control





REQUEST A CATALOGUE / PRICE LIST

Cig-Arrête Tobacco Smoke Detector & SpeechPOD

The Cig-Arrête SD Evolution CSA-GSV24 incorporates Smoke and PIR motion detection and is designed to provide voice messages in any area of a facility to warn of illicit tobacco smoking, special risks or hazards such as slips, trips and falls, infection control procedures, hygiene requirements, security monitoring  or point of sale merchandising.

Fully programmable with a simple hand held remote, the Cig-Arrête® SD Evolution product range is a truly global product with the ability to play any audio file in any language without the need for complex programming knowledge.

* All SD Evolution systems require part number CSA-IR2 remote control





REQUEST A CATALOGUE / PRICE LIST

Cig-Arrête Sounder Flasher Unit

The Cig-Arrête SD Evolution CSA-FSU24 incorporates a voice alarm combined with an ultra bright LED Flasher Unit and is designed to provide voice messages and visual indication in remote areas of a facilities to warn of illicit tobacco smoking, such as restrooms, washrooms in schools, hospitals and business.

Fully programmable with a simple hand held remote, the Cig-Arrête® SD Evolution product range is a truly global product with the ability to play any audio file in any language without the need for complex programming knowledge.

* All SD Evolution systems require part number CSA-IR2 remote control





REQUEST A CATALOGUE / PRICE LIST

Cig-Arrête Infra Red Remote Controller

The Cig-Arrête® SD Evolution range is completely configurable using the remote controller. Part No CSA-IR2 provides all the functionality to control all the products in the SD Evolution range at a distance of 6 metres from the product. Volume, message selection, timer delay functions are all accessed using the CSA-IR2.

Colour coded, the remote controller allows complex configurations of Cig-Arrête, SpeechPOD and RadAlert products, with simple feedback in the language of your choice to ensure that you have configured the product correctly.



* All SD Evolution systems require part number CSA-IR2 remote control



REQUEST A CATALOGUE / PRICE LIST

Cig-Arrête (110-240vac) 24Vdc 1 Amp Power Supply

The Cig-Arrête® SD Evolution CSA-024 Power Supply is designed to power a 1 Amp load with an input voltage of 110—240Vac. The power supply is fused and provides 4 x 24Vdc outputs for connection to all SD Evolution, RadAlert and SpeechPOD products.



The unit will provide 24Vdc to power all of the Cig-Arrête® and SpeechPOD product range and is supplied in an IP54 grey enclosure.

The power supply is also UL and TOV approved for indoor use.



* All SD Evolution systems require part number CSA-IR2 remote control



REQUEST A CATALOGUE / PRICE LIST

Cig-Arrête (110-240vac) 12Vdc 1 Amp Power Supply

The Cig-Arrête® SD Evolution CSA-012 Power Supply is designed to power a 1 Amp load with an input voltage of 110—240Vac. The power supply is fused and provides 4 x 24Vdc outputs for connection to all SD Evolution, RadAlert and SpeechPOD products.



The unit will provide 24Vdc to power all of the Cig-Arrête® and SpeechPOD product range and is supplied in an IP54 grey enclosure.

The power supply is also UL and TOV approved for indoor use.



* All SD Evolution systems require part number CSA-IR2 remote control



REQUEST A CATALOGUE / PRICE LIST
